Начало Автомобилна Аудио Техника 2-DIN Мултимедия Автомобилна 2-DIN мултимедийна система Kenwood DDX-4025BT

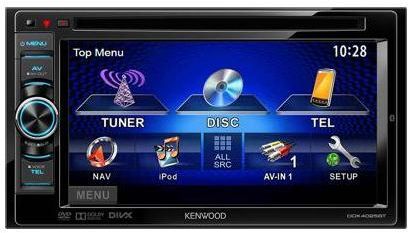

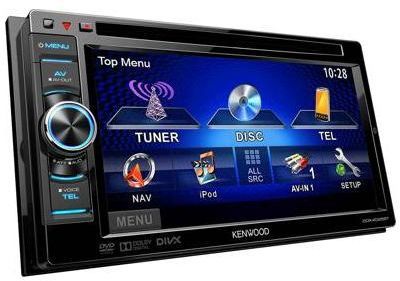

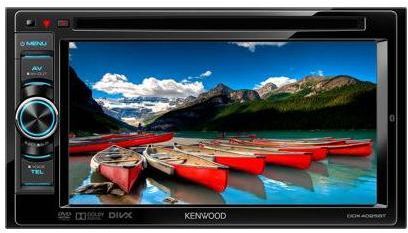

Автомобилна 2-DIN мултимедийна система Kenwood DDX-4025BT

Цена: 659.00 лв.
  • Оценка: (0)
  • Код:
    ddx4025bt

2-DIN DVD автомобилна мултимедийна система с 6.1" сензорен екран, вграден Bluetooth и USB вход

  • Възпроизвеждане на аудио и видео файлове от DVD/USB/iPod, поддържа DivX
  • Вграден Bluetooth модул (HFP и A2DP профил)
  • 6.1" (136.2 x 72mm) екран с резолюция 800х480
  • 3-лентов еквалайзер
  • MOSFET 4x50W

Ориентировъчни цени за доставка

До София на цена от 6.75 лв. Извън София на цена от 6.75 лв.
Няма наличност
Добави в желани

General Features

DIN Size 2 DIN
Disabled System Indicator (DSI) Yes
Security Code Function ( user set) Yes
On Screen Display (OSD) Operation Yes
Smooth GUI Yes
Selectable GUI Background Wallpaper Yes
Key Illumination Variable colour
Touch sensor Yes
Installer Memory Yes
Back-up Memory Yes
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
Optional IR remote controller Yes, KNA-RCDV331
Digital Clock (24H) Yes
ISO connector Yes
Bluetooth unit built-in Yes
Optional navigation system unit Yes, (KNA-G620T)
Made for iPod Yes
Firmware upgreadable Yes



Monitor Features

In-Dash/On-Dash In-Dash
LCD type 6,1 inch Wide VGA
LCD backlight LED
Display Mode 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display Yes
Screen Adjustments Brightness/Tint/Colour/Contrast/Black Level/Sharpness/Dimmer
Dimmer function ON/OFF/Sync
Visual Source Mode DVD/Video/USB/iPod/AV-in
Touch Panel Yes
NTSC/PAL judge Auto
V.OFF/TFT Off Mode Yes



Multimedia GUI Features

Variable Colour illumination Yes
GUI colour coordinate Yes
Menu text in selectable language ► English
► French
► German
► Italian
► Spanish
► Portuguese
► Dutch
► Greek
► Turkish
► Russian
► Arabic
► Chinese
► Hebrew
► Persian
► Thai
► Persian
► Hebrew
► Indonesian
Colour Pallet 256
Base Colour Class 65000
Background Customize Yes
Preset Wallpaper Type Yes
Software updates (SoC) (USB)
Scroll Display Yes



Tuner Features

Radio Data System Yes
Radio Text Plus Yes
Program Type Function (PTY) Yes
K3I - Clean Reception Tuner Yes
Traffic Information Yes
FM Reception Yes
AM (MW/LW) Reception Yes
Presets 24 Presets (18FM / 3LW / 3MW)
Station Select List
Tuner preset/recall key Yes
Automatic Memory Entry (AME) Yes
Up/Down Seek Tuning Yes
Tuning mode (Auto1 / Auto2 / Manual) Yes
FM Stereo / Mono Selector Yes



DVD-Features

Disc Capacity 1 Disc(s)
DVD±R/RW Compatible Yes
DVD Region Code 2
CD-R/RW Compatible Yes
CD Text Yes
MP3, WMA,AAC & WAV playback Yes
Digital/Analog Converter 24 bit
MPEG1/2 Video File (.mpg) Compatible Yes
JPEG File (.jpg) Compatible Yes
DivX Yes
CD-DA Repeat/Scan/Random play Yes
Direct Search Yes
Time Code Display Yes
Resume Play Yes
Zoom Control (DVD/VCD) Yes
Disc Menu Direct Touch Yes



USB Features

USB terminal Yes, front side
USB Type USB1.1 / USB 2.0
Kenwood Music Editor Lite Compatible Yes
Kenwood music control App for Android Yes
MP3, WMA, AAC & WAV playback Yes
MPEG1 Video decoder Yes
MPEG2 Video Decoder Yes
DivX Video Decoder Yes
Repeat/Scan/Random search Yes
Direct search Yes
Resume play Yes
Time code display Yes



iPod Features

Made for iPod & iPhone * Yes
USB Video & Audio direct control (2 wire) with optional KCA-iP22F
Album art support Yes
App & iPod control mode Yes
Garmin iPhone app mode Yes
Reverse browsing Yes
Works with iPod Classic * 80G, 120G & 160G
Works with iPod Video * 5th/6th generation
Works with iPod Touch * 1st-5th generation
Works with iPod Nano * 1st-7th Gen
Works with iPhone * Yes
Battery charge + power control Yes
1A current capability Yes
* Always update to latest Apple firmware



Audio features

Max. Output Power (MOSFET Power IC) 4 x 50W
Pre-out 3RCA: Front/Rear/Subwoofer
Pre-out Output Level 4V
Subwoofer Reference Level Adj. Yes
Source Tone Control & Memory Bass / Mid / Treble
Balance/Fader Control Yes
Loudness Control Yes
Att.(-20dB) with smooth Volume Return Yes
System Q (Preset Sound Control) Yes
System E's+ (Built-in HPF & LPF) Yes
Beep On/Off Yes



Video Features

Audio/Video Output 1 RCA
Audio/Video Input 1 RCA
iPod AV input switchable to additional AV input Yes
Video-In for Rear-view Camera 1 dedicated NTSC video input (RCA)
Advanced navigation terminal Yes



Connectivity

OEM Wired Remote Control Yes
Parking sensor wire Yes
Reverse sensor wire Yes
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes
Advanced navigation RGB terminal Yes
External microphone input Yes



Bluetooth General Features

Module Yes, USB dongle (Telechips)
Hands free Profile (HPF) Yes
Advanced Audio Distribution Profile (A2DP) Yes
Phonebook Access Profile (PBAP) Yes
Phone numbers hold: up to 600 per registered phone.
Voice recognition dialing Yes, from phone
Object Push Profile (OPP) Yes
Audio/Video Remote Control Profile (AVRCP) Yes
Easy pairing function Yes
Easy pairing A2DP device Yes
Easy pairing HFP device Yes
Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes
Compatibility check mode Yes
High-quality noise canceling microphone Yes
Bluetooth firmware upgradeable Yes
* depends on phone model/make



Tuner Specifications

FM Frequency range (50kHz step) 87.5MHz ~ 108MHz
FM Usable Sensitivity 0.7μV/75ohm (S/N 26dB)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 46dB)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 65dB
FM Selectivity(DIN) over 65dB (±400kHz)
FM Stereo Separation (1kHz) 35dB
MW Frequency Range 531kHz ~ 1611kHz
LW Frequency Range 153kHz ~ 279kHz



DVD Specifications

D/A Converter 24 bit
Video decoder MPEG1/MPEG2/DivX
Audio decoder Linear PCM/Dolby Digital/dts/MP3/WMA/AAC/WAV
Wow & Flutter Below Measurable Limit
Freq. Resp. (96kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 99dB (1kHz)
Dynamic Range 98dB
Disc Format DVD-Video/Video-CD/CD-DA
Sample Frequency 44.1kHz/48kHz/96kHz
Sample Frequency 96k / 48k / 44,1kHz
Quantifying bit number 16/20/24bit



USB Specifications

USB Version compatibility 1.1 / 2.0
File System FAT 16/32
Maximum Supply current 1000mA
D/A Converter 24 bit
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
WAV Decode Linear - PCM Files



Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 4000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 12.5kHz ±8dB



Video Specifications

Color System of External Video Input NTSC/PAL
External Video Input Level (RCA) 1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA) 2 V / 25 kOhm
Analog RGB Input 0.7 Vpp / 75 Ohm
Video Output Level (RCA) 1 Vpp / 75 Ohm
Audio Output Level (RCA) 1.2 Vpp / 10 kOhm



Monitor Specifications

Screen size (Diagonal) 6.1 Inches Wide
Screen Size (WxH) 136.2 x 72mm
Display system Transparent TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 11552000pixels (800(H) x 480(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)



Bluetooth specifications

Technology bluetooth 2.0 certified
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes
Advanced audio distribution profile (A2DP) Yes
Audio/Video remote control profile (AVRCP) Yes
Object push profile (OPP) Yes
Phonebook access profile (PBAP) Yes



Accessories

Escutcheon Yes
Installation Sleeve Yes
DC cord (Molex to ISO) 25 cm
Handsfree Microphone with 300 cm cable



General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 111 x 163mm
Weight 2000gr
Operation Temperature Range -10°C ~ 60°C
Storage Temperature Range -20°C ~ 85°C
Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR/RUS/UKR (CD-ROM)
